MODULO XL : BENCHES & PLANTER

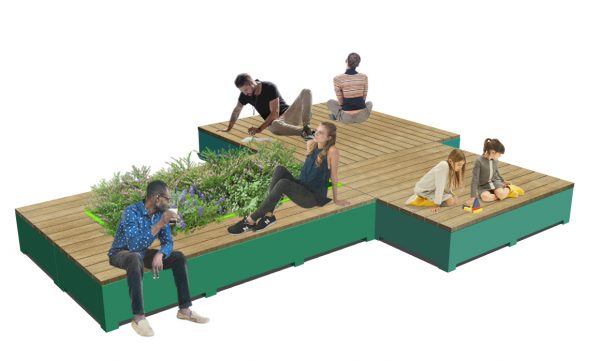

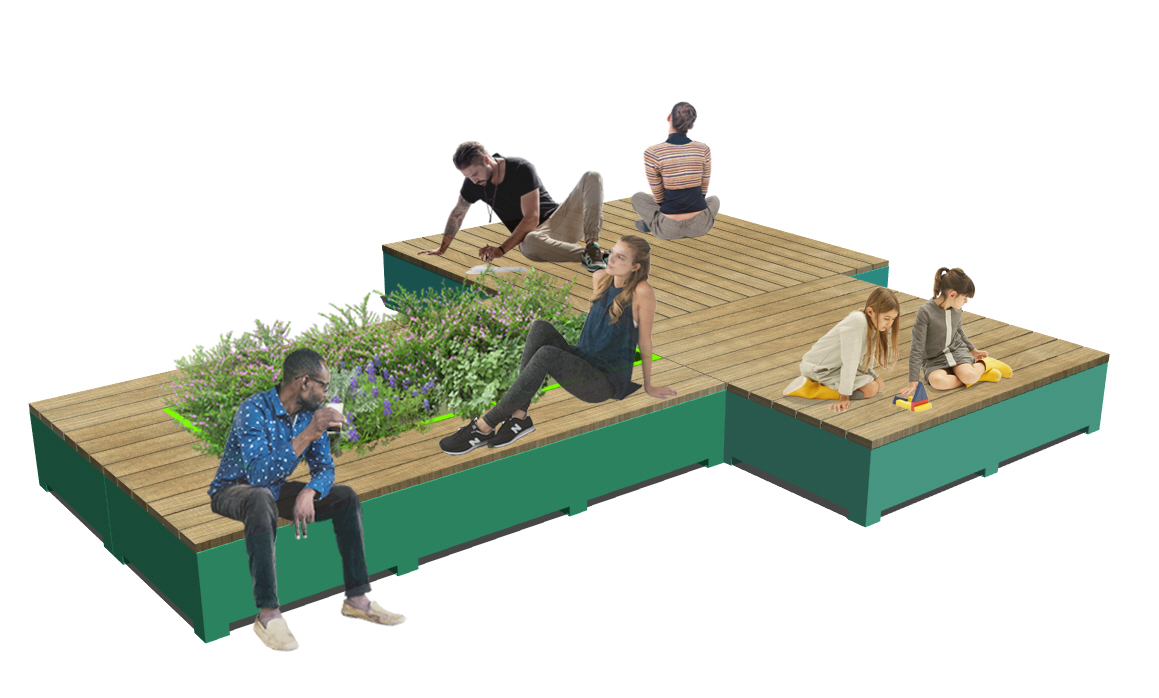

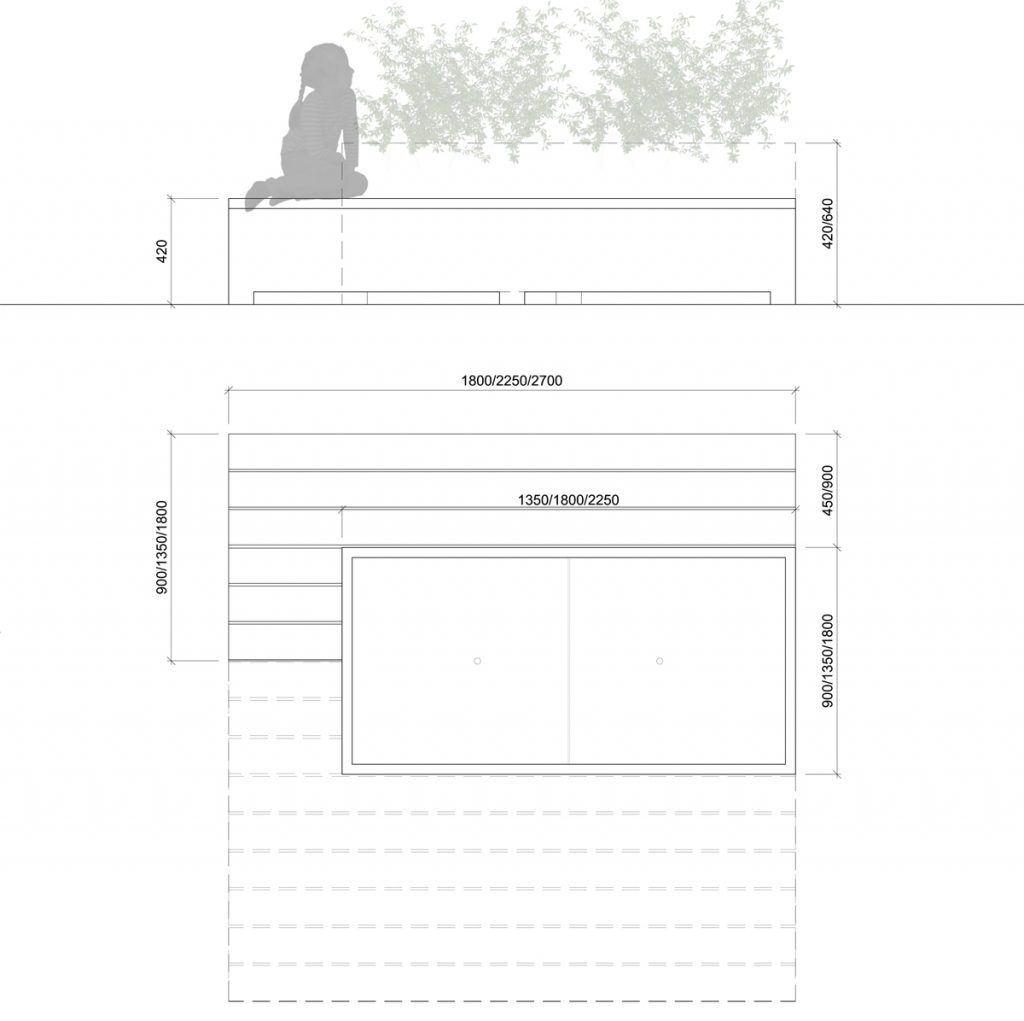

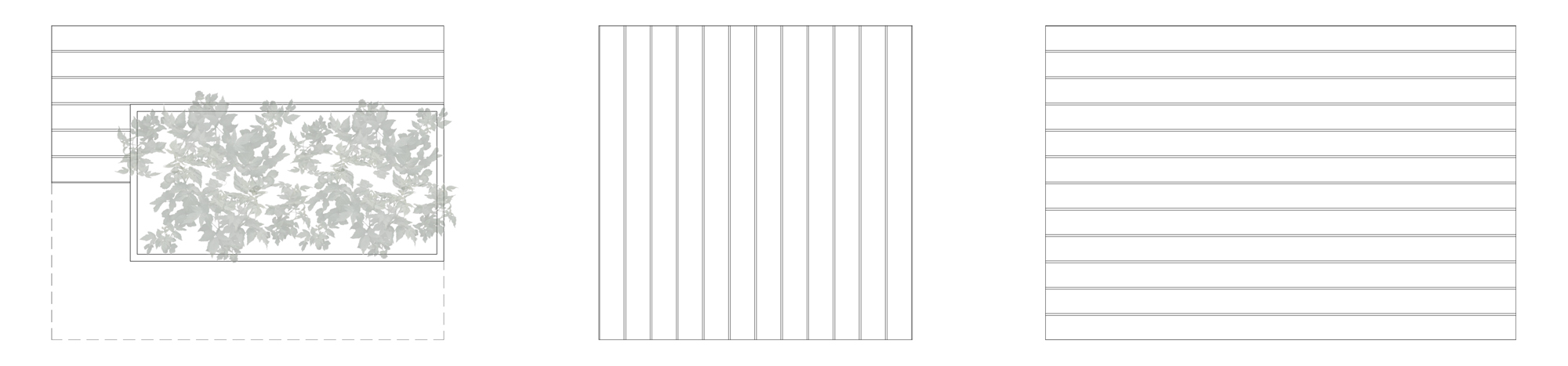

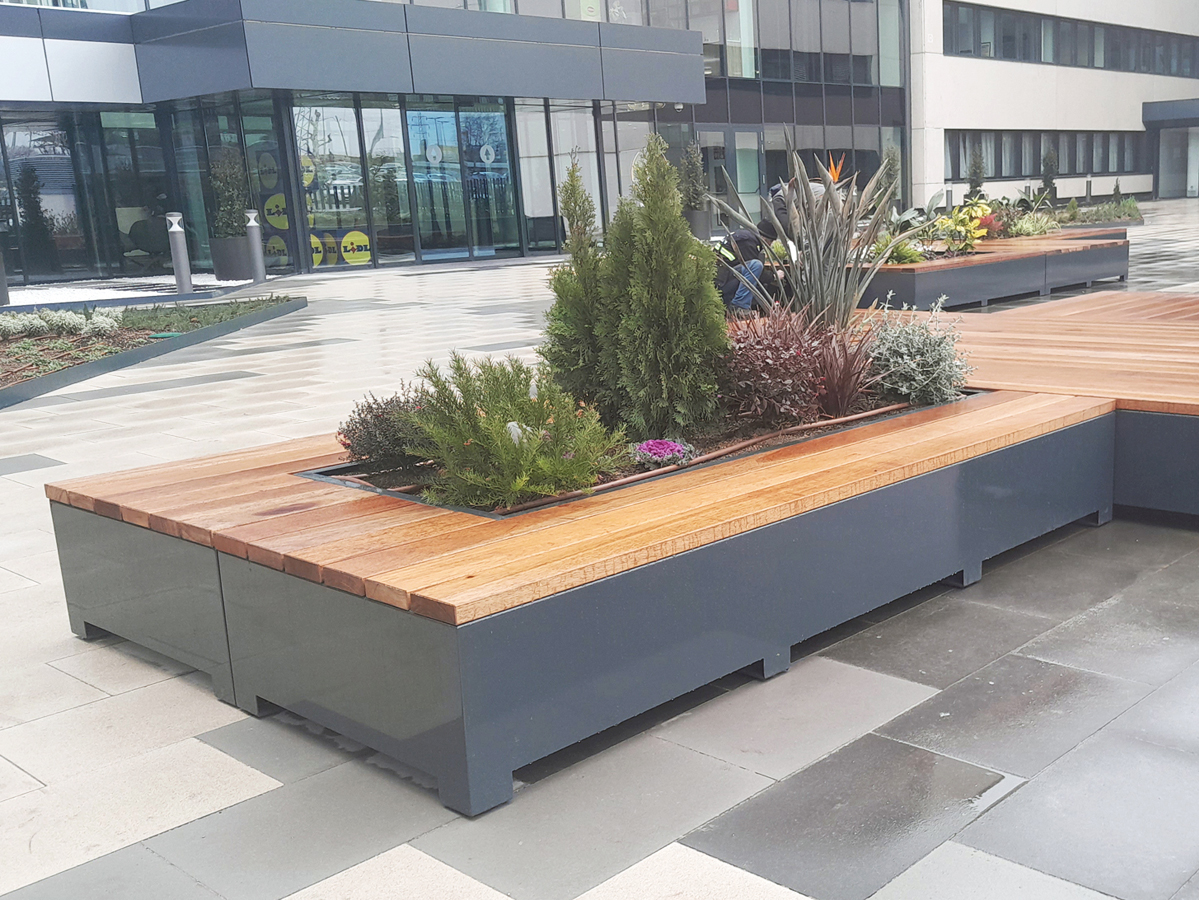

TYPE "A" MODULO-XL BENCH & PLANTER

BC-MOD-XL_A / JAR-MOD-XL

Galvanized and power-coated steel – Optional RAL. Thickness 3 mm
Wooden seat: C4 autoclave Flanders Pine, Larch or FSC Tropical. Section 140mm x 28/40mm
Dimensions BENCHES:
900mm x 2700mm x H420mm
1350mm x 2250/2700mm x H420mm
1800mm x 2250mm x H420mm
Dimension Planters:
900mm x 2250mm x H420mm
1350mm x 1800mm x 420mm
1800mm x 1800mm x H420mm
USB Devices in option: 2 USB Sockets IP55 – 5V-1500mA

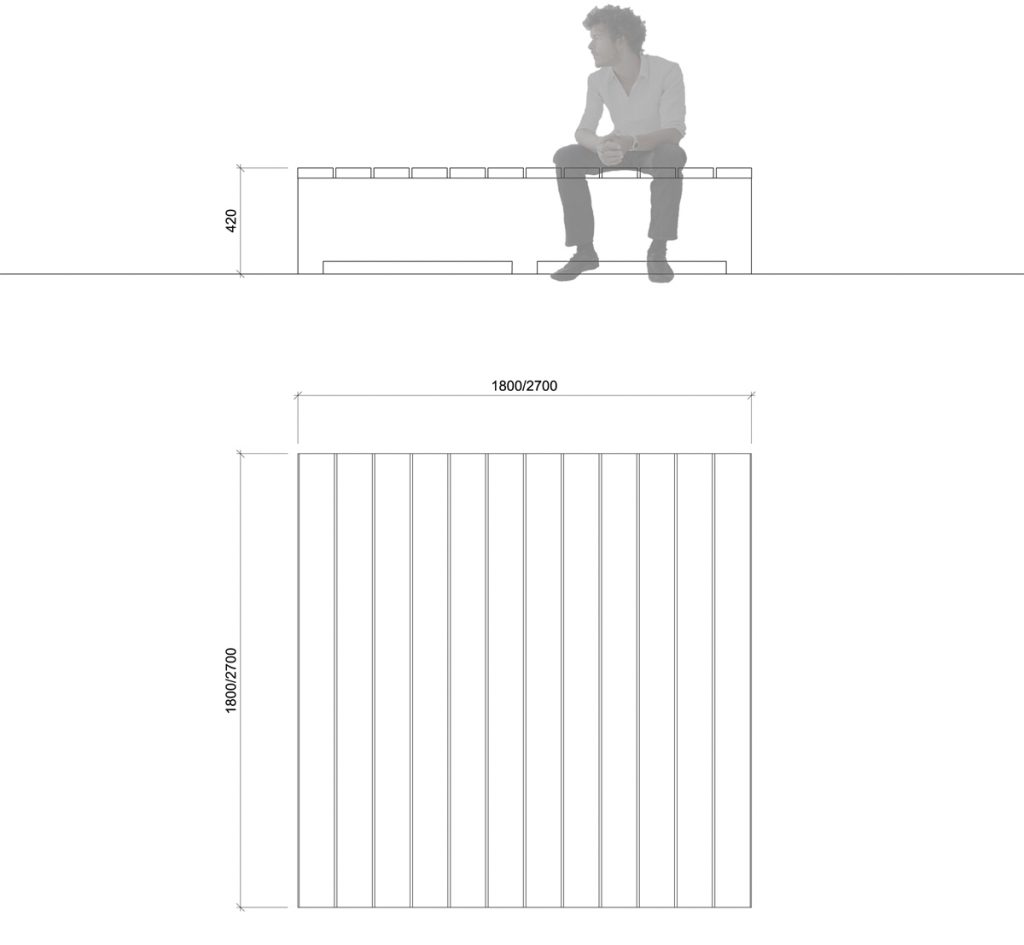

TYPE "B" MODULO-XL BENCH

BC-MOD-XL_B

Galvanized and power-coated steel – Optional RAL. Thickness 3 mm
Wooden seat: C4 autoclave Flanders Pine, Larch or FSC Tropical. Section 140mm x 28/40mm
Dimensions:
1350mm x 1350mm x H420mm
1800mm x 1800mm x H420mm
2250mm x 2250mm x H420mm
USB Devices in option: 2 USB Sockets IP55 – 5V-1500mA

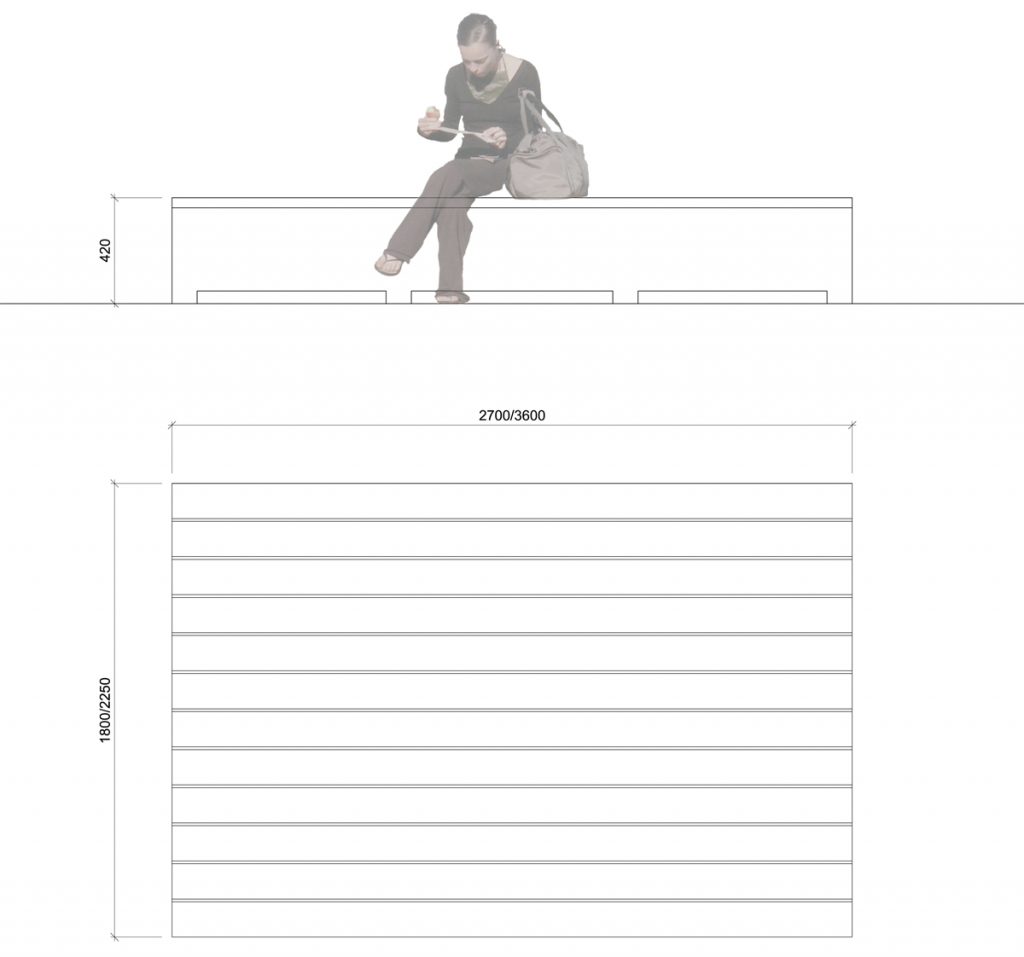

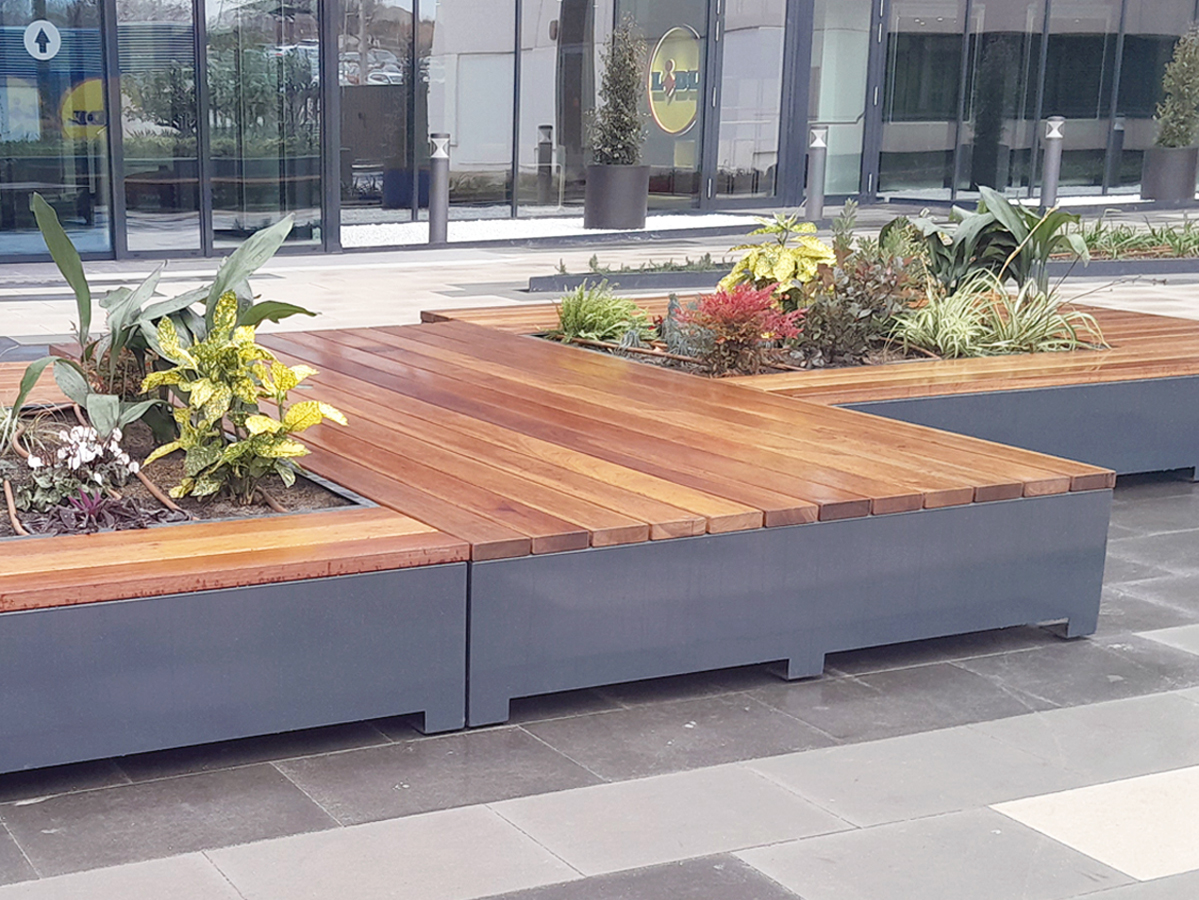

TYPE "C" MODULO-XL BENCH

BC-MOD-XL_C

Galvanized and power-coated steel – Optional RAL. Thickness 3 mm
Wooden seat: C4 autoclave Flanders Pine, Larch or FSC Tropical. Section 140mm x 28/40mm
Dimensions:
1800mm x 2700mm x H420mm
2250mm x 3600mm x H420mm
USB Devices in option: 2 USB Sockets IP55 – 5V-1500mA
